SAE Socket Weld Flange is one of our main SAE flange types, it is also the most popular SAE flange type, also known as SAE SW flange, code 61 and code 62 Socket weld flange, also known as CD61 /CD62 SW flange.
SAE Socket Weld Flanges are the insertion of a pipe into the recessed area of an SAE flange to create a welded connection. It is designed to withstand high pressure applications and is available in two series (3000 and 6000). SAE Socket Weld Flanges are designed according to international standards SAE J518 and ISO 6162. The pressure range refers to SAE J518 standard.
There are three common types of SAE Socket Weld Flanges, namely SAE Socket Weld Slot Face, SAE Socket Weld Flat, and SAE Socket Weld Double Flange.
1. SAE socket welding groove surface

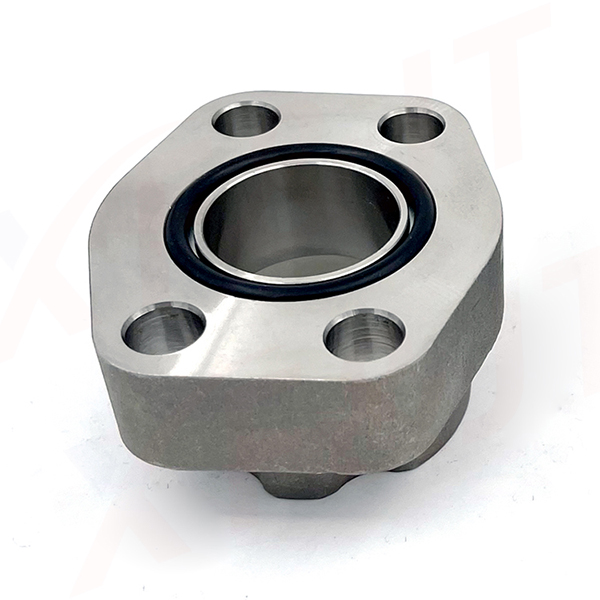

2. SAE socket welding plane

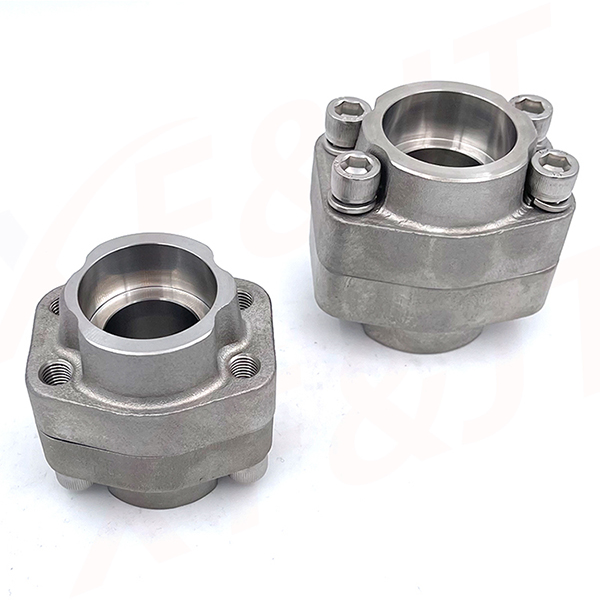

3. SAE socket welding double flange
We produce SAE Socket Weld Flanges, SAE Socket Weld Flange counterparts, Flat SAE Socket Weld Flanges, SAE Socket Weld Elbow Flanges (SAE 90D Socket Weld Flanges).
