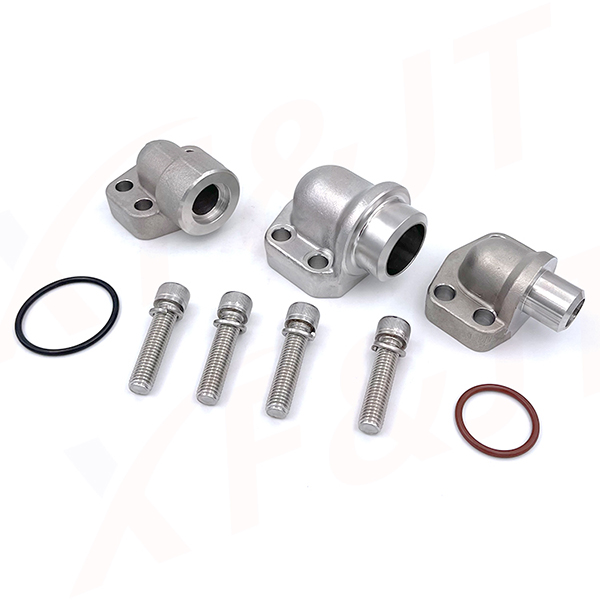

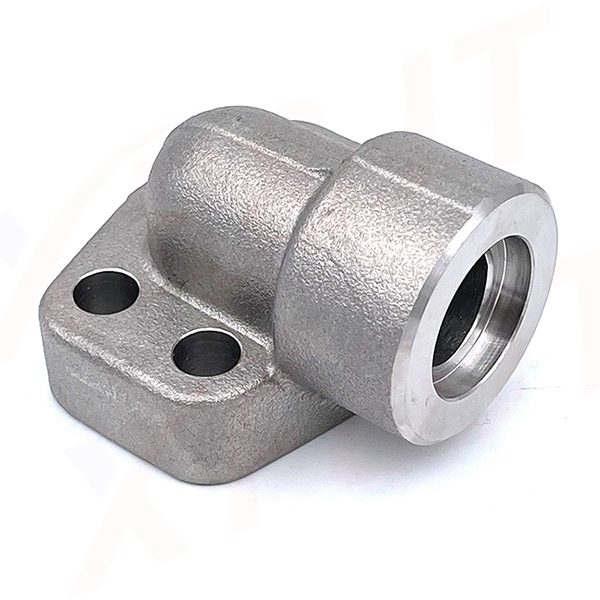

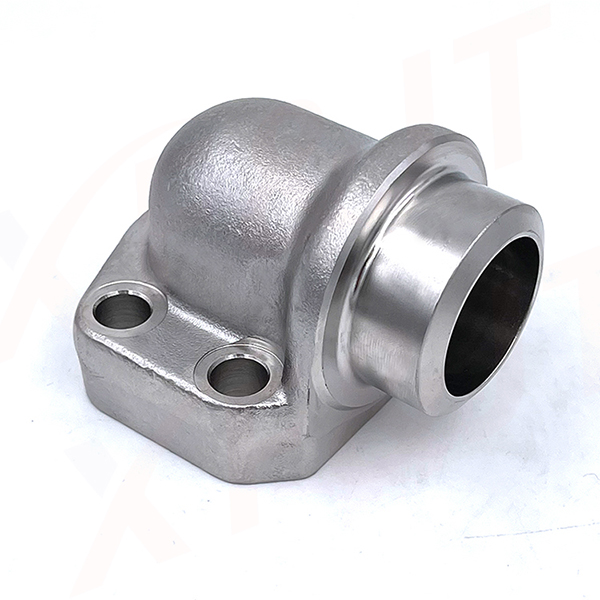

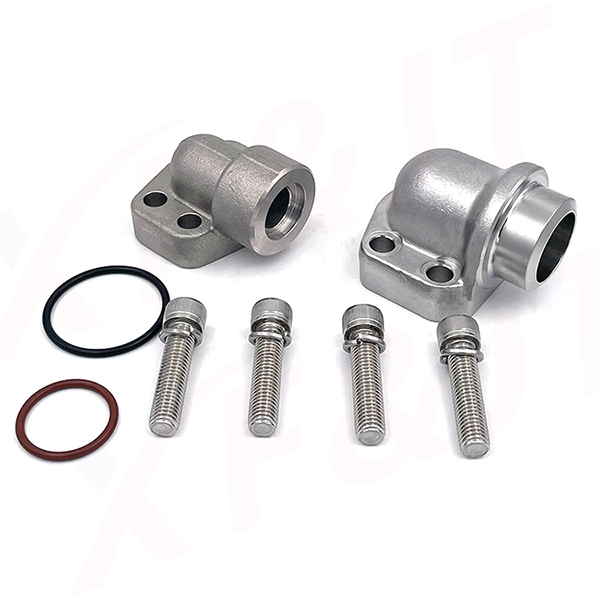

SAE 90D flanges are connecting devices used in hydraulic systems for areas where flow direction needs to be changed.
SAE 90D flanges are used as a connection between two pipes, which can make the surface completely sealed, providing a strong and leak-free connection, SAE 90D flanges come in a variety of types, according to the needs in the application form or type of connection.
SAE 90D flanges are one of the least common types of flanges. It is designed to withstand high pressure applications and is available in two series (3000 and 6000). SAE 90D flanges are designed in accordance with international standards SAE J518 and ISO 6162. The pressure range refers to SAE J518 standard.
Advantages of SAE 90D flanges
1. One of the main advantages of flange fittings is that it is easy to connect flanges and other parts, especially in areas where the installation space is small and the flow direction needs to be changed. SAE 90D flanges can be installed in the connection and reduce the coverage area.
2. It is very economical to use SAE 90D flanges. They do not require adapters for pipes, nozzles, pipes, etc. During installation, the SAE 90D flanges flange ensures that the correct torque value is obtained, thus reducing the concern of over tightening or under tightening.
3. SAE 90D flanges are available in a variety of sizes, which makes them suitable for many systems. The need for perfect sizes is reduced and they cover a wide range of inches.
4. SAE 90D flanges ensure easy maintenance, installation and removal of components during routine inspections.
5. SAE 90D flanges helps reduce the impact of pressure and vibration on the system. With their ability to withstand high pressure, they can work well with the heavy machinery in the system.
