SAE flange is the most widely used pipe connector in modern industrial pipeline system and device connection.
It is often used in mechanical, petroleum, chemical, water conservancy, electric power, light industry, textile, shipbuilding, metallurgy, pharmaceutical, nuclear industry and other projects.
This article mainly explains the application of SAE flange clamp in construction machinery.
The application of SAE flange in construction machinery mainly consists of a pair of split flange clamps, fastening bolts and sealing gaskets.
It can fix the rubber hose joint of the hydraulic system on the device through bolts and flanges to achieve the connection effect.
SAE flange not only plays the role of connection in the hydraulic system, but also its bearing capacity needs to be considered.
SAE flange can be divided into SAE high pressure flange, SAE low pressure flange, also known as SAE heavy flange and SAE light flange according to the pressure bearing capacity. The PSI values are 6000PS and 3000PSI respectively.

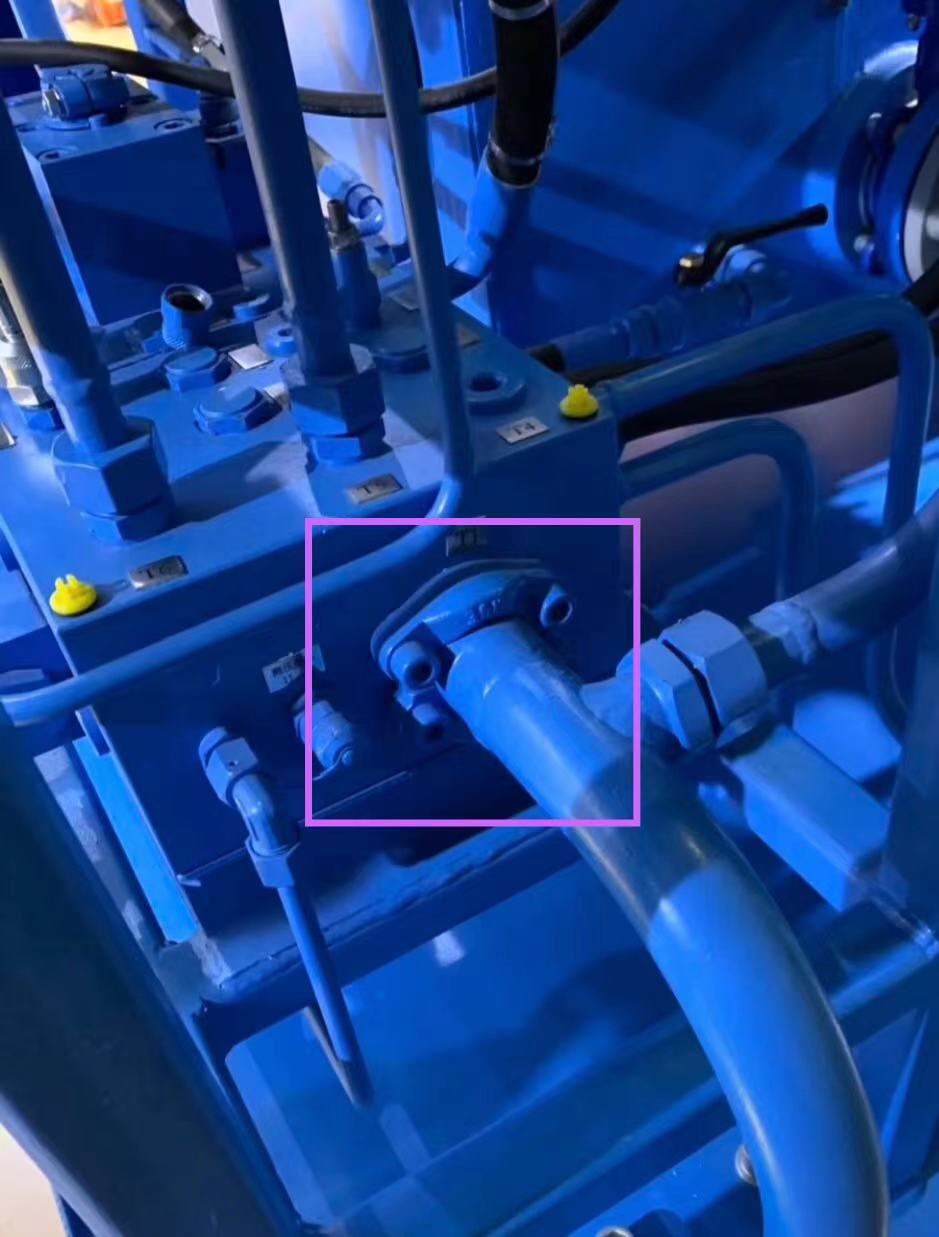

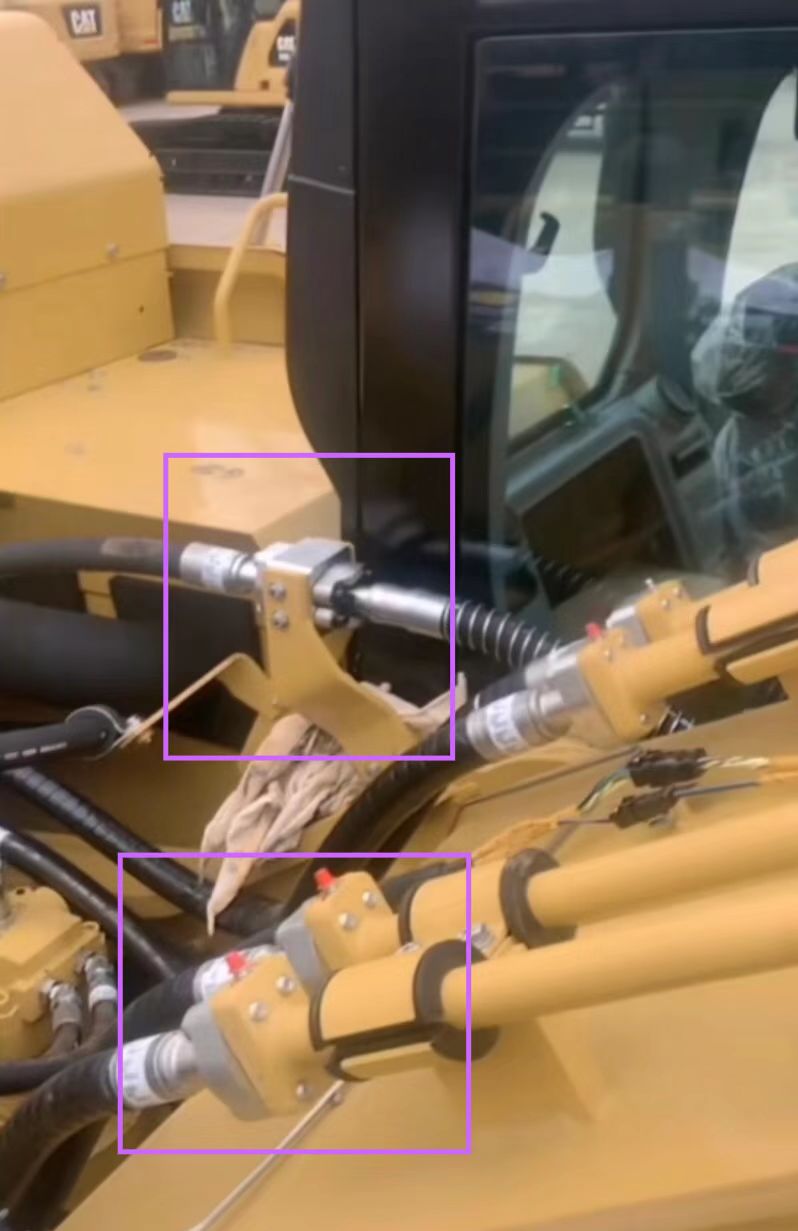

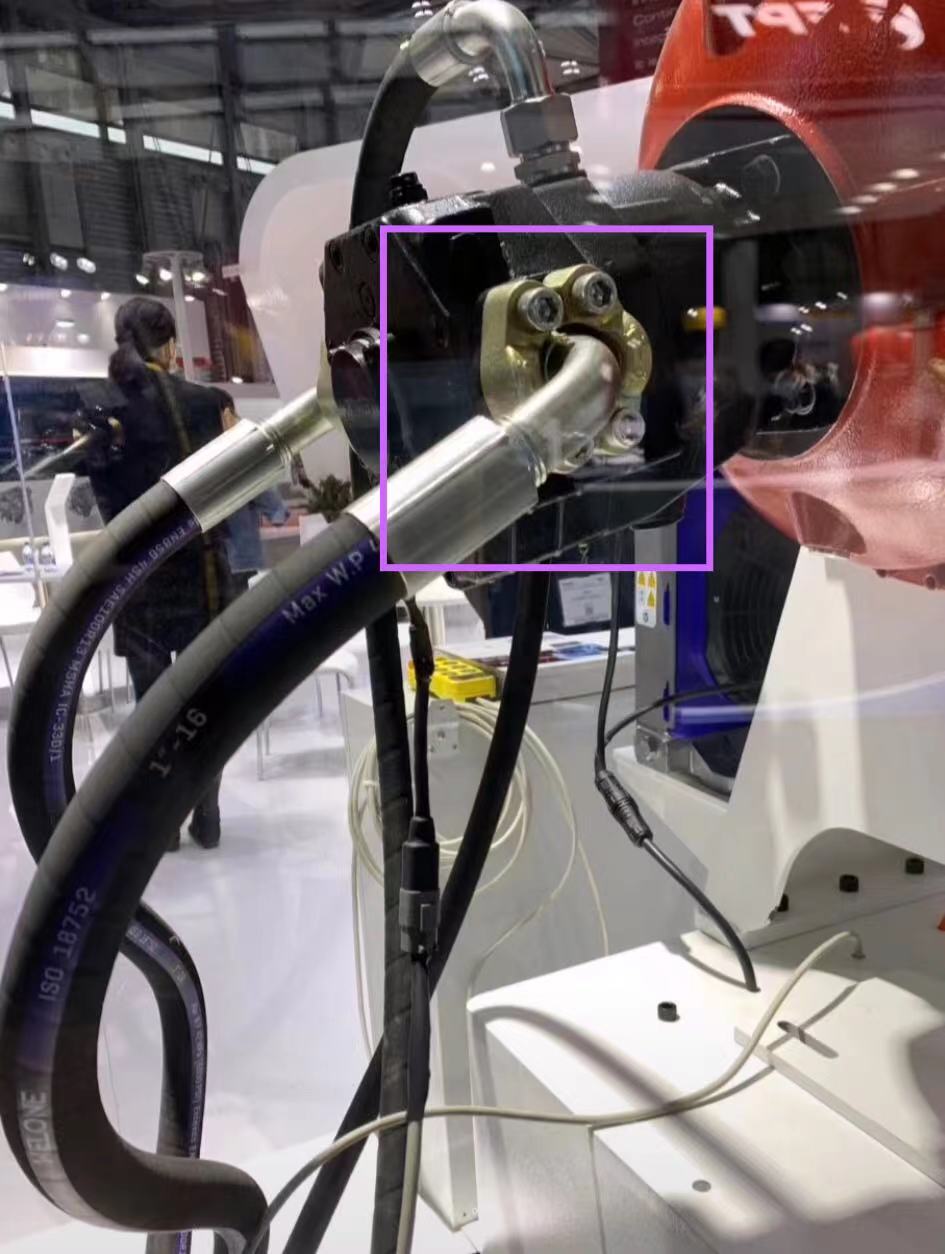

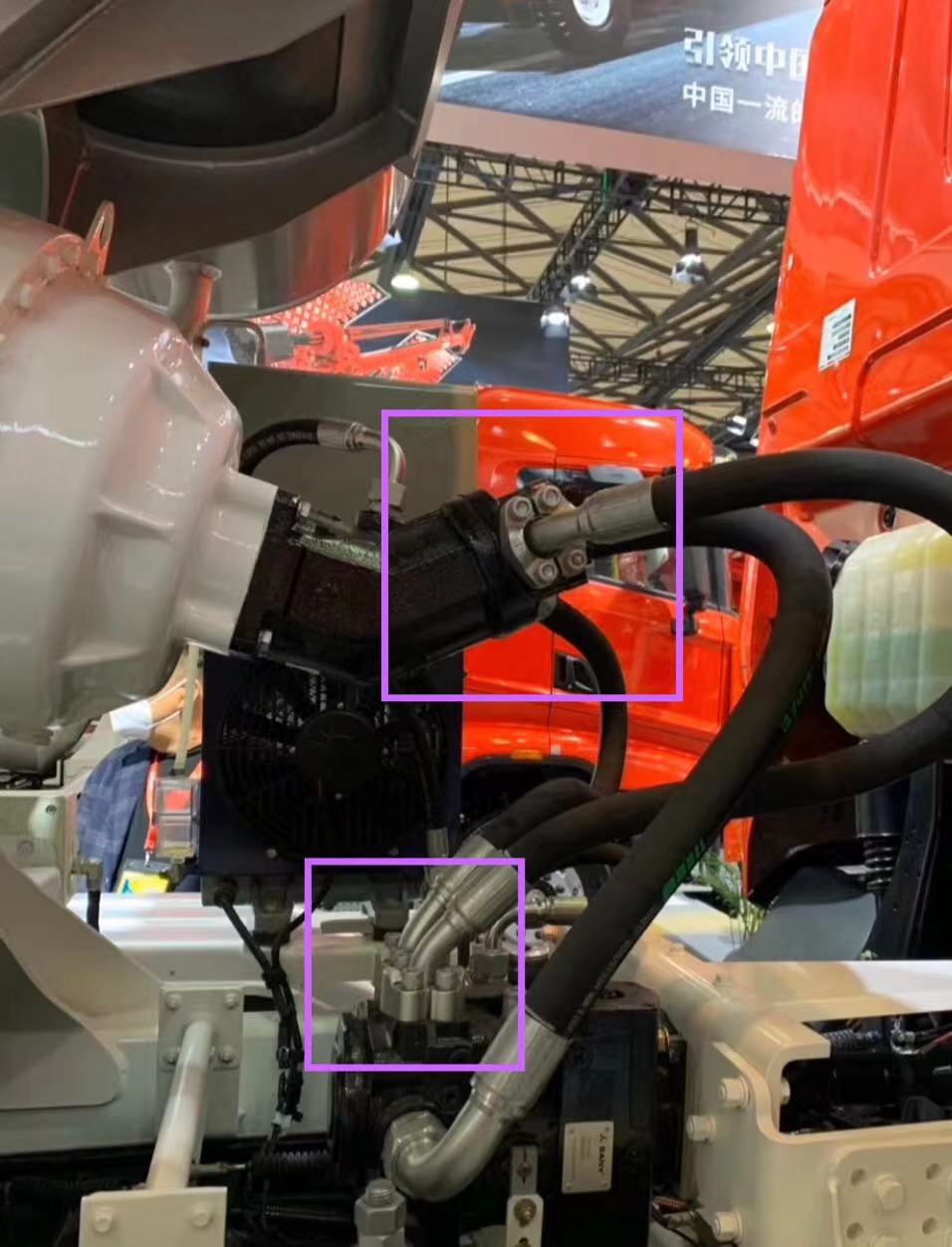

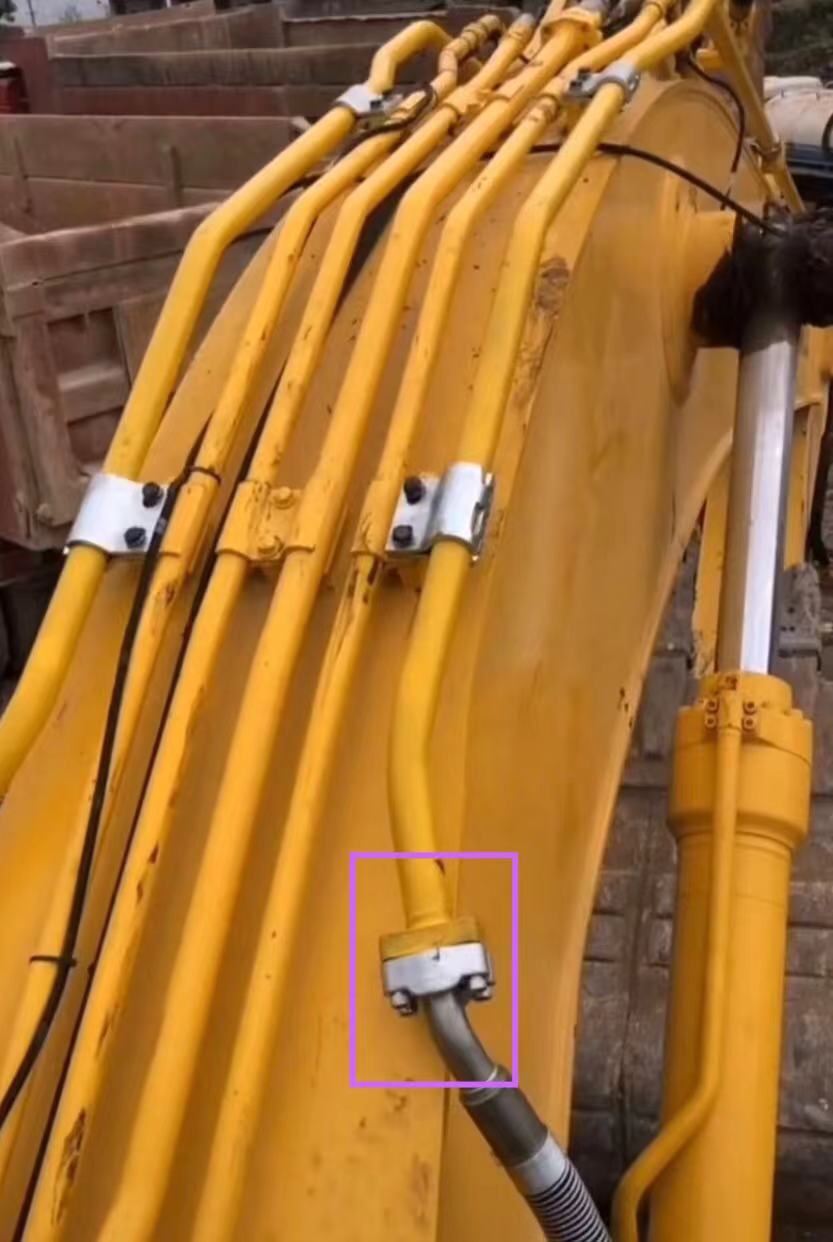

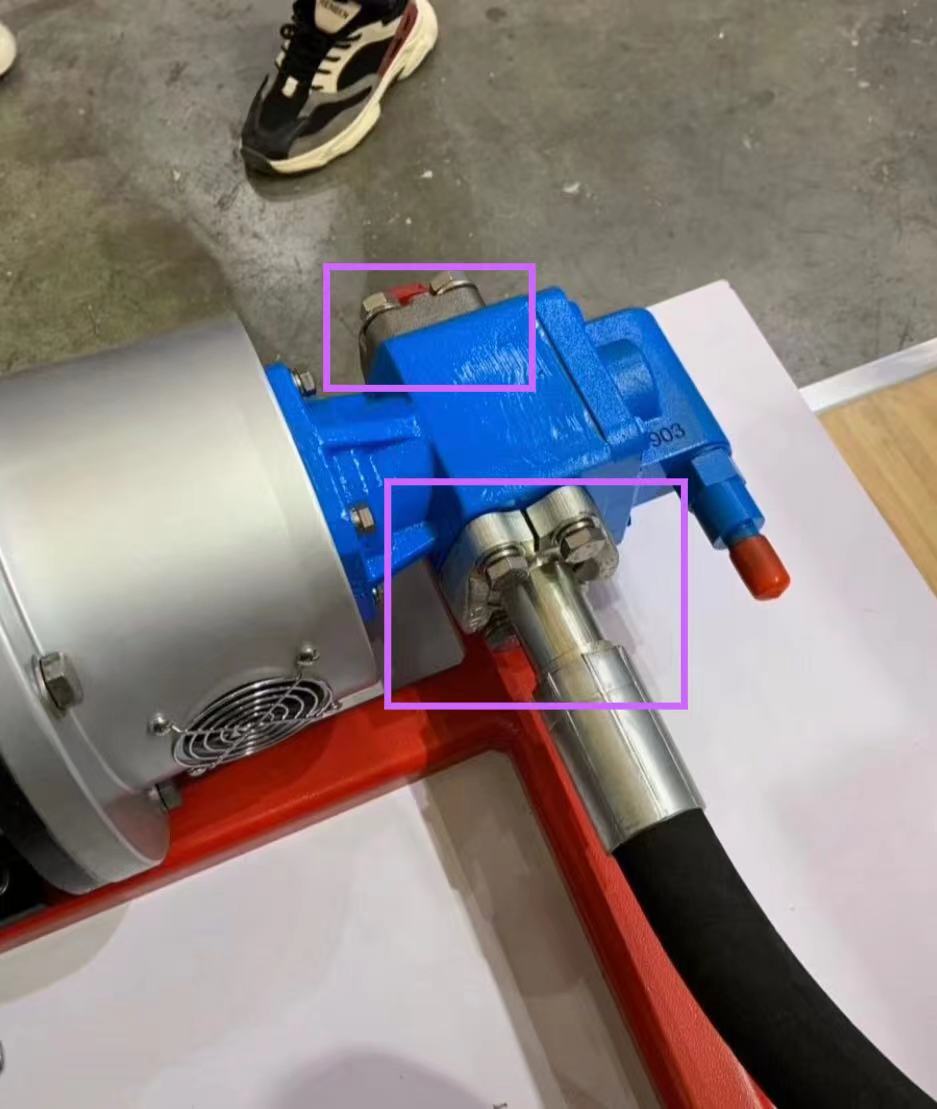

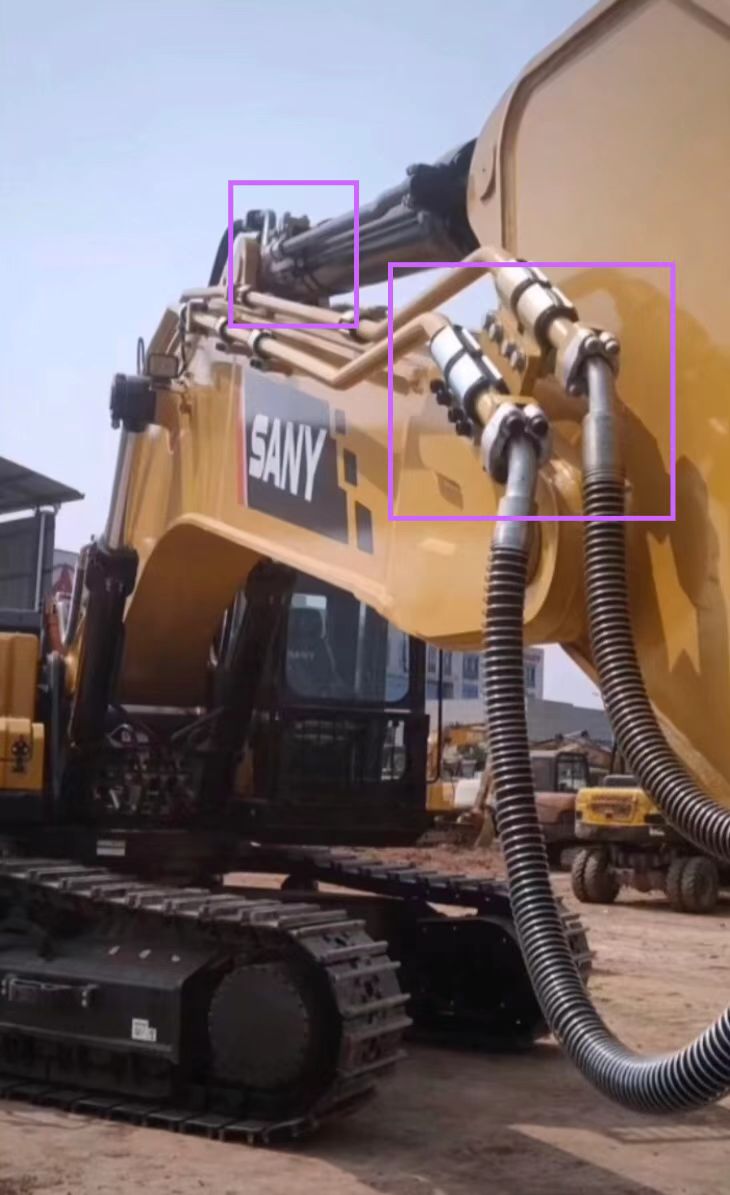

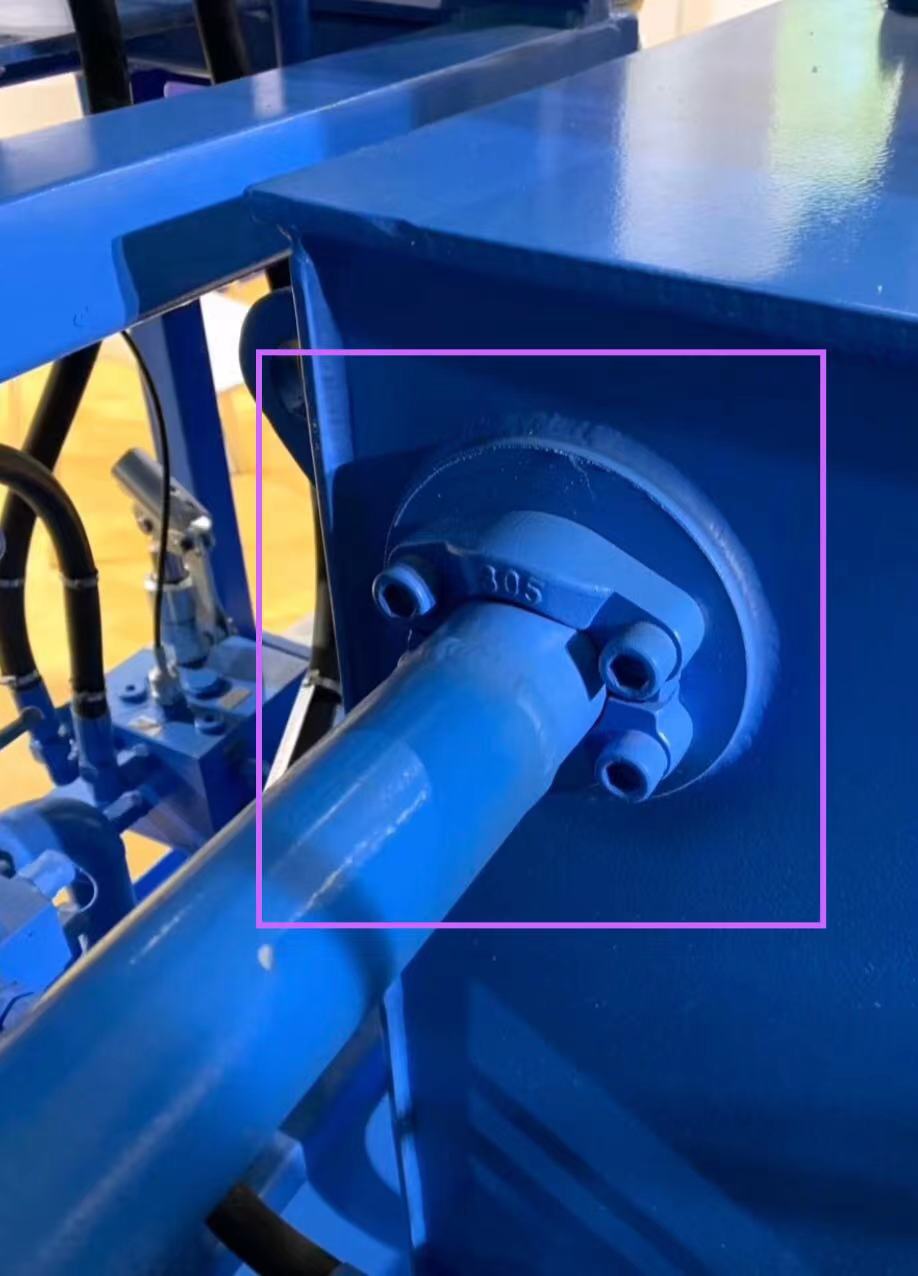

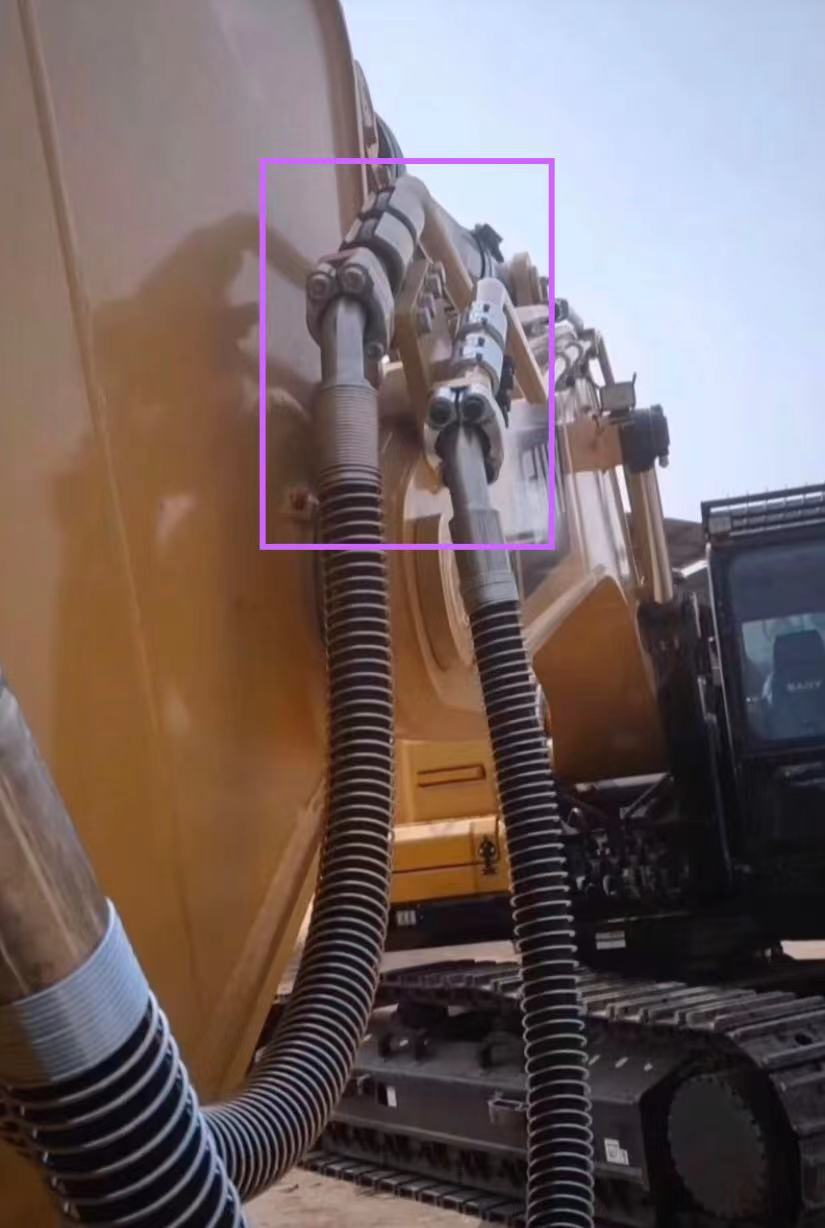

The application scenario of SAE flange in construction machinery is shown in the picture in this issue.
