SAE Flange Purchasing Avoidance Guide: Key Points for Machining Tolerances, Seal Grooves & Raw Material Inspection

Many enterprises only compare unit prices when purchasing SAE flanges, ignoring raw material quality, machining precision and seal groove compliance. After delivery and installation, frequent issues such as oil leakage, insufficient pressure resistance and mismatched dimensions leading to assembly failure occur, resulting in returns, rework and construction schedule delays. This article shares key risk avoidance points for industrial SAE flange procurement from four core dimensions: raw materials, machining tolerances, seal grooves and inspection standards, tailored for bulk supporting procurement in construction machinery, offshore engineering and metallurgical industries.


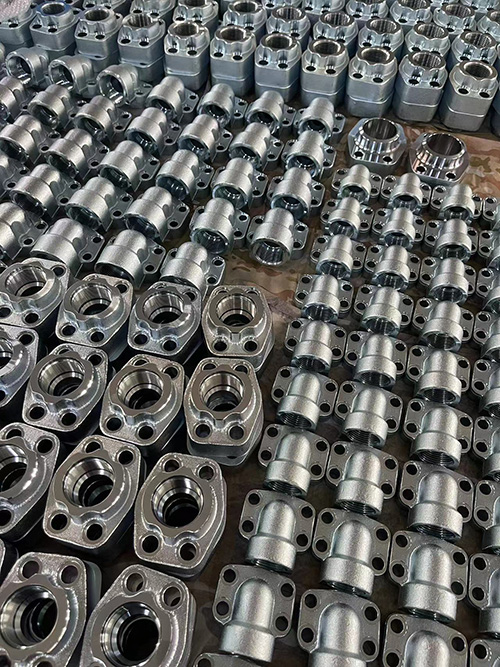

1. Raw Material Inspection: Prevent Substandard Material Substitution

Unscrupulous manufacturers forge flanges with inferior carbon steel or recycled stainless steel, drastically reducing structural strength, corrosion resistance and pressure bearing capacity, which easily causes cracking and leakage under high-pressure working conditions. Two mandatory inspection items upon goods receipt:

  • Carbon steel SAE flanges: Require forged and quenched & tempered 45# steel. Reject flanges directly lathed from ordinary cast iron or plain round steel without tempering treatment, as such flanges feature poor toughness and tend to crack under vibration.

    • Stainless steel flanges: Material certification reports must be provided for 304 and 316 grades. On-site spectrum inspection is recommended if necessary to prevent counterfeit 201 stainless steel being passed off as 304/316, which suffers severe rusting in short-term salt spray environments.

Request material test reports from suppliers before placing orders. Extract test samples for third-party inspection for bulk orders to eliminate material fraud at the source.




2. Machining Tolerance Control: Dimensional Deviations Lead Directly to Assembly Failure

SAE flanges are manufactured in strict accordance with SAE J518 dimensional tolerances. Minor deviations can trigger bolt misalignment and poor sealing surface fitting. Core acceptance checkpoints are as follows:

  • Flatness of flange sealing surface: High-precision flanges adopt precision grinding with flatness tolerance controlled within 0.03mm. Rough lathed surfaces cause oil leakage under high pressure.

  • Flange outer diameter, thickness and bolt center distance: Tolerances for identical nominal sizes must not exceed standard limits. Drawings are required for verification of non-standard modified products.

  • Weld bevel dimensions for weld-on SAE flanges: Standardized bevel depth and angle. Non-compliant bevels result in cold joints and leakage during welding.

Low-cost non-standard flanges skip critical machining procedures with severely out-of-spec tolerances. While they appear cost-effective upfront, they double equipment failure rates after installation.


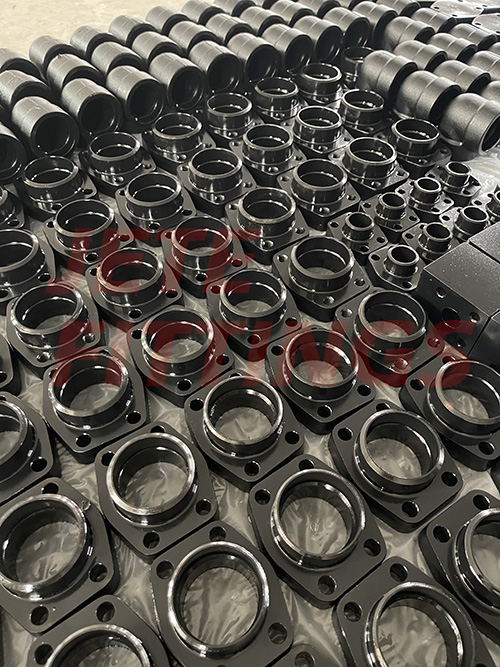

3. Seal Groove Acceptance: Defective Grooves Cause Oil Leakage Even with Premium O-Rings

The seal groove is the core sealing structure of SAE flanges and a primary area for corner-cutting by low-quality manufacturers:

  • Groove width and depth must fully comply with SAE J518 standards; groove walls shall be smooth without burrs or steps.

  • Complete groove fillets are required. Sharp corners cut O-rings, causing leakage shortly after operation.

  • No lathe tool marks, pits or uneven surfaces on grooves, as rough textures accelerate wear and aging of sealing components.

For sample inspection, test-fit standard O-rings on the flanges. Qualified grooves allow smooth fitting and uniform compression of rubber rings; jamming or excessive deformation of O-rings indicates unqualified groove machining.


4. Mandatory Factory Inspection Items: Exercise Caution with Products Lacking Complete Inspection Procedures

Reputable manufacturers implement multiple pressure and sealing tests before delivery, while small workshops without inspection equipment ship untested flanges with inadequate pressure resistance directly to customers. Standard testing procedures include:

  • Static pressure holding test: Maintain 1.5 times the rated working pressure for 5 minutes; no leakage or deformation allowed.

  • Sealing surface leakage test: Simulate repeated equipment pulse pressure cycles to verify long-term sealing stability.

  • Full visual inspection: Complete burr removal and sharp edge deburring; no shrinkage cavities, blowholes or forging cracks on flanges.

Request factory inspection reports from suppliers prior to order placement. Sample pressure testing can be arranged for large-batch orders.




5. Practical General Risk-Avoidance Tips for SAE Flange Procurement

  1. Prioritize manufacturers with integrated full-process production lines covering forging, precision machining and laboratory inspection; avoid resold flanges from middlemen without quality control.

  2. Clearly specify standards in contracts: SAE J518 compliance, material grades, tolerance limits and warranty periods, with agreed return & replacement terms for dimensional errors and leakage failures.

  3. Complete sample testing and pressure verification with small trial orders before releasing mass production orders to avoid massive losses from non-conforming bulk goods.

  4. Do not aggressively cut procurement costs for harsh working conditions (offshore engineering, ultra-high pressure). Opt for thickened forged and high-precision stainless steel flanges.


Conclusion

Unit price comparison alone is insufficient for SAE flange procurement. Four core indicators – raw material quality, machining tolerances, seal groove precision and factory inspection standards – directly determine hydraulic pipeline failure rates. Standardized acceptance protocols, clear technical specifications and pre-mass trial samples effectively reduce hidden costs caused by unqualified flanges, including equipment downtime, rework and product returns.


XF&JT independently forges and processes hydraulic SAE flanges compliant with SAE J518 standards. We supply complete material certificates for all raw materials, adopt CNC precision machining for seal grooves, and conduct high-pressure leakage testing on every finished product. Carbon steel and stainless steel flanges are in stock with custom non-standard machining per drawings available. For bulk supporting orders, we offer sample pressure testing and dedicated technical support services.
